Introduction

In your developing journey, you must have heard about terminals, consoles, command-line interfaces (CLI), or TTY windows. These terms describe text-based interfaces that allow users to interact with their computer systems using text commands. Terminals might seem daunting at first, but they are powerful tools that have been central to computing for decades.

What is a Terminal?

A terminal is a text-based interface that allows users to interact with their computer by typing commands. Unlike graphical user interfaces (GUIs), which use windows, icons, and menus, terminals rely on text to perform tasks by execute textual commands.

Historical Evolution

Terminals as of we know today were not the same in the past. They were physical electronic devices that were used to interact with computers in the early days of computing (mainly in the input and output).

Here’s a brief overview of their evolution:

Technology Evolution Timeline

  1. 1920s - Teleprinter:

    • The early teleprinter devices, such as the TeleType Model 15, began to be used for transmitting typed messages over telegraph lines.

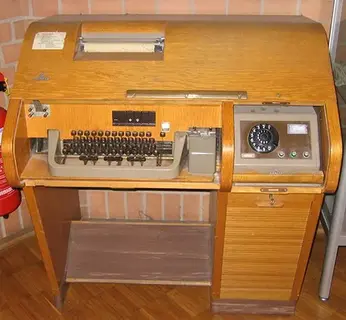

    Teleprinter Teleprinter

  2. 1930s - Teletyper (TTY):

    • The term “Teletyper” became commonly used to refer to devices that combined teleprinter functionality with typing.

  3. 1950s - Line Printer:

    • Developed for high-speed printing of text and data, these were often used with early computers.

    IBM 1403 Printer IBM 1403 Line Printer

  4. 1960s - Terminals:

    • The introduction of Video Display Terminals (VDTs) like the IBM 2250 offered a way to interact with computers via screens and keyboards.

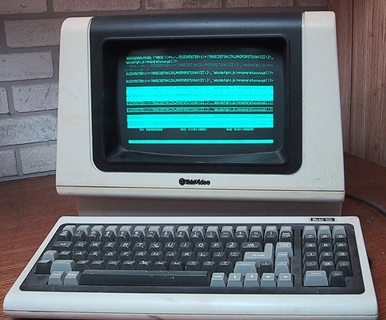

    VDT Terminal Televideo925 Terminal

  5. 1970s - CRT Terminals:

    • Computer terminals with cathode-ray tube (CRT) displays became popular, providing real-time interaction with computers.

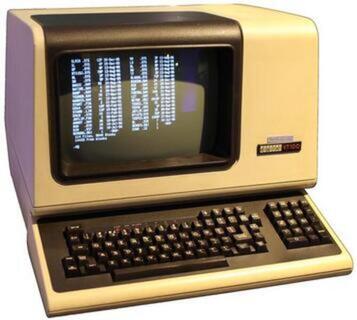

    DEC VT100 DEC VT-100

  6. 1980s - Early Terminal Emulators:

    • The development of terminal emulators like Kermit allowed personal computers to emulate the functionality of hardware terminals and interact with mainframes and minicomputers.

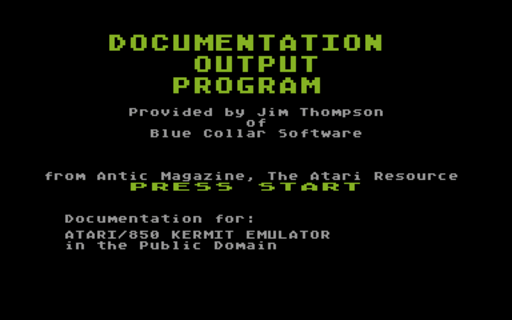

Kermit Kermit Terminal Emulator

Components of a Modern Terminal Emulator

  1. Graphical Interface: Provides the window where the terminal session is displayed.

    • Input Handling: Manages keyboard input and passes it to the.
    • Output Display: Renders the output from the shell in the terminal window.

  2. Psuedoterminal (PTY): The name suggests it is a false terminal. This is a device that emulates/replicates the physical terminal.

    • Master Side: Master side is controlled by the terminal emulator which interacts with the user and the shell.
    • Slave Side: Slave side behaves like a traditional terminal, allowing the shell or application to communicate as if it were a physical terminal device.

  3. Shell Integration: Integration of the terminal emulator with various shell environments (like Bash, Zsh) for command execution.

  4. Settings Management: Allows users to customize preferences including themes, fonts, key bindings and behaviour of the terminal emulator.

Architecture of Terminal emulator

+--------------------+
| User Interface |
| +----------------+ |
| | Text Area | |
| +----------------+ |
| | Input Area | |
| +----------------+ |
+--------|-----------+
|
v
+--------------------+
| Input Handling |
| (Keyboard Capture) |
+--------|-----------+
|
v
+--------------------+ +----------------+
| Pseudoterminal | <-----> | Shell |
| (Master / Slave) | +----------------+
+--------|-----------+
|
v
+--------------------+
| Output Rendering |
| (Text & ANSI Codes)|
+--------------------+
|
v
+---------------------+
| Settings Management |
| Session Handling |
+---------------------+

How Does a Terminal Emulator Connect to the Shell When Opened?

Opening a terminal emulator creates a pseudoterminal (PTY) which acts as a bridge between the terminal emulator and the default shell (like Bash or Zsh).

Here’s how the process works:

  1. Pseudoterminal Creation: The terminal emulator creates a PTY, which consists of two sides: the master side (controlled by the terminal emulator) and the slave side (where the shell runs).

  2. Input Handling: When user types a command, the master side of the PTY captures user input and sends it to the slave side, where the shell processes the command.

  3. Command Execution: The shell executes the command and generates output, which may include text and ANSI escape codes.

  4. Output Transmission: This output is sent back to the terminal emulator through the PTY.

  5. Display on Screen: Finally, the terminal emulator renders the output on the screen, allowing the user to see the results of the command.

Common Use Cases for Terminal Emulators

Terminal emulators are powerful tools that serve a variety of purposes in computing. Here are some common use cases:

File Management

Terminal emulators allow users to navigate their file system efficiently. With simple commands.

  • Listing files and folders present inside a folder.
  • Showing the contents of a file (images as well using kitty rendering protocol).
  • Navigating through directories (folders).
  • Create or Delete files and directories.

System Administration

For system administrators, terminal emulators are essential for managing servers and systems remotely. Tasks include:

  • Installing software using package managers (like apt, yum, or brew) and updating software and system without any hassle.
  • Monitoring system processes and performance for resource management.
  • Managing users and permissions for the operating system.

Programming and Development

Developers rely on terminal emulators for a variety of programming tasks:

  • Compiling code and building program binaries (.exe or .sh files which run directly in os).
  • Executing shell scripts or scripts written in other programming languages directly inside the terminal.
  • Using tools like Git from the terminal makes version control a breeze, letting you manage changes with a few keystrokes instead of wrestling with drag-and-drop interfaces.

Networking and Remote Access

Terminal emulators can be used to manage network connections and access remote systems:

  • SSH (Secure Shell) Connections: Using ssh to securely connect to remote servers for management or development.
  • File Transfers using (FTP/NTP/Samba): Using tools like scp or rsync to transfer files between local and remote systems.

Automation and Scripting

Repetitive tasks can be automated using shell scripts, which can be written and executed directly in the terminal:

  • Task Scheduling: Using cron to schedule scripts to run at specific times.
  • Batch Processing: Automating data processing or file manipulation tasks using shell scripts or scripts written in other languages.

Advantages of Using Terminals

Using a terminal emulator offers numerous benefits that can enhance your computing experience. Here are some key advantages:

Speed and Efficiency

  • Quick Commands: Entering commands via keyboard is often faster than navigating through menus. Power users can accomplish tasks in seconds, streamlining workflows significantly.

Automation

  • Scripting: Terminals allow you to create and run scripts to automate repetitive tasks, saving time and reducing the chance of errors. A simple script can handle complex sequences of commands with ease.

Resource Light

  • Low Resource Usage: Terminal emulators consume far fewer system resources than graphical interfaces, making them ideal for older hardware or when running resource-intensive applications.

Remote Access

  • SSH and Remote Management: Terminals enable secure connections to remote servers, allowing you to manage systems from anywhere without needing a graphical interface.

Powerful Control

  • Advanced Functionality: Terminals provide access to powerful commands and tools that may not be available in graphical applications, allowing for greater flexibility and control over your system.

Customization

  • Personalized Environment: You can customize your terminal’s appearance and behavior to fit your preferences, from changing colors and fonts to setting up key bindings that suit your workflow.

Learning and Development

  • Skill Building: Using a terminal encourages users to learn more about their operating system and command-line tools, enhancing technical skills that are valuable in various fields.
